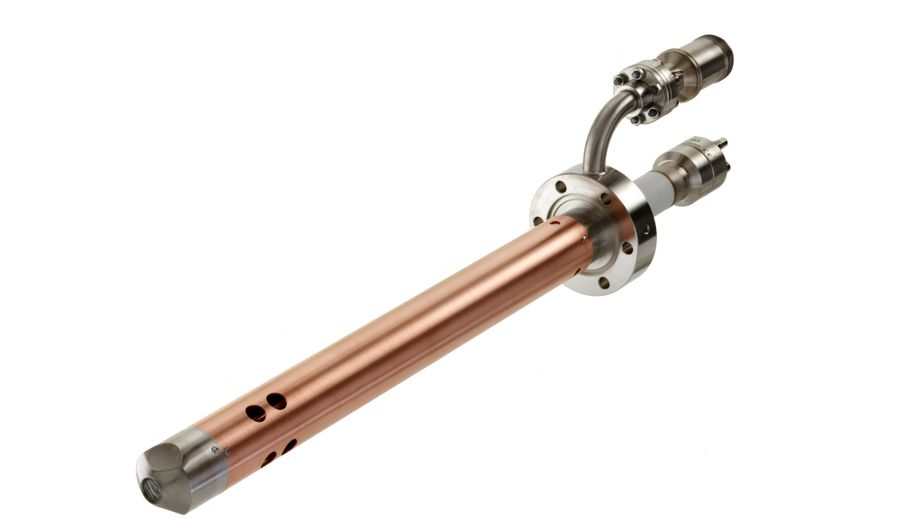

Dual anode X-ray source

Twin-anode high intensity X-ray source, compatible with the XM1000 monochromated X-ray source.

Dedicated design provides minimized crosstalk between the two anodes and a digital power delivers up to 400 W highly stabilized X-ray power.

The power supply is fully software integrated; automatic soft-start and degassing procedures ensure easy handling of the source. In standard configuration the source is configured with a Magnesium and an Aluminum anode. The anode can also be provided with other anode materials.

Key features

  • Twin anode X-ray source
  • High X-ray flux for fast sample analysis
  • Linear drive for optimum working distance (optional)
  • Digital power supply
  • Fully software controlled
  • Other anode materials (on request)

Electrons are extracted from the selected heated Thoria coated tungsten filament. The filament material ensures that even under high emission a long lifetime is achieved. The focusing ring and nose cone shape ensure that the electrons hit the selected active anode face at the correct spot. By switching between either of the filaments a different anode face may be excited. The standard twin anode source has aluminium and magnesium facets.

The anode internal design creates turbulent water flow conditions, optimised to prevent the aluminium or magnesium surfaces from evaporating and to minimise sample heating via the source. The X-rays generated at the anode surface pass through a thin Aluminium window designed to maintain a partial vacuum barrier between source and sample.

The window allows the source to be differentially pumped and to reduce Bremsstrahlung radiation. The profiled nose cone has been designed to minimise mechanical clashes and allow the source to operate as close as possible to the sample, whilst other techniques are in use.
