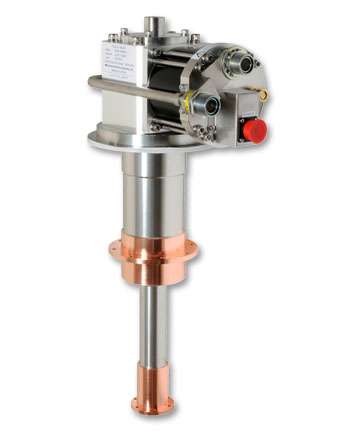

The RDK-408D2 two-stage Gifford-McMahon Cryocooler is one of SHI’s mid-capacity 4K Cryocoolers, with a second-stage capacity of 1.0 W @ 4.2 K (50/60 Hz).  It operates with both air and water-cooled helium compressors.

These 4K Cryocoolers can be found cooling a wide variety of analytical and experimental devices, and offer a very cost effective alternative to open-cycle liquid helium systems.

Standard Scope of Supply

• RDK-408D2 Cold Head
• F-50L/H, F-70L/H, FA-50L/H or FA-70L/H Compressor
• Helium Gas Lines – 6 m (20 ft.)1,2,3; 6-20 m (20-66 ft.)4; 6 m (20 ft.) with Buffer Tank4; or 10 m (33 ft.) [IDU] + 10 m (33 ft.), 20 m (66 ft.) or 30 m (99 ft.) [ODU]5
• Cold Head Cable – 6-20 m (20-66 ft.)
• Power Cable – 5 m (16.5 ft.)1,4; 3-6 m (10-20 ft.)2; 2-8 m (6-27 ft.)3; or 5 m (16.5 ft.) [IDU] + 10 m (33 ft.), 20 m (66 ft.) or 30 m (99 ft.) [ODU]5
• Hose Nipples
• Tool Kit
