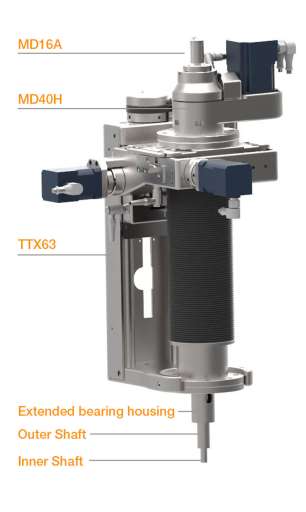

In this example a manually actuated TETRAXE with 250mm stroke and +/-15mm X & Y motion has been combined with  a  hollow magnetically-coupled rotary feedthrough with additional rotary feedthrough to provide primary rotation of the outer shaft and independent secondary rotation of the inner shaft.

X&Y Motion

Manually actuated +/- 15mm X & Y travel.

Z Translation

Manually actuated 250mm Z translation.

Tilt

Manual +/- 2 degree tilt integrated in to the mounting flange.

Rotation 1 (Primary Rotation)

Manually actuated continuous rotation of the outer shaft.

Rotation 2 (Secondary Rotation)

Manually actuated independent rotation of the inner shaft which passes through the bore of the hollow Rotation 1 rotary feedthrough. Learn more about hollow magidrives here.

Extended Bearing Housing

Providing shaft support and improved rotational concentricity.

TTX Key Features

• TETRAXE provides the perfect platform to build complex manipulators
• CF40, CF63 & CF100 flange options
• Z translation to 300mm
• X&Y manipulation up to +/-15mm
