Thermocouple feedthroughs have pins made from the corresponding thermocouple pair materials. On the vacuum side, the pins terminate with a screw connector (included). The (+) pole is 25mm shorter than the (-) pole. Miniature Thermocouple connectors are included for the air side.

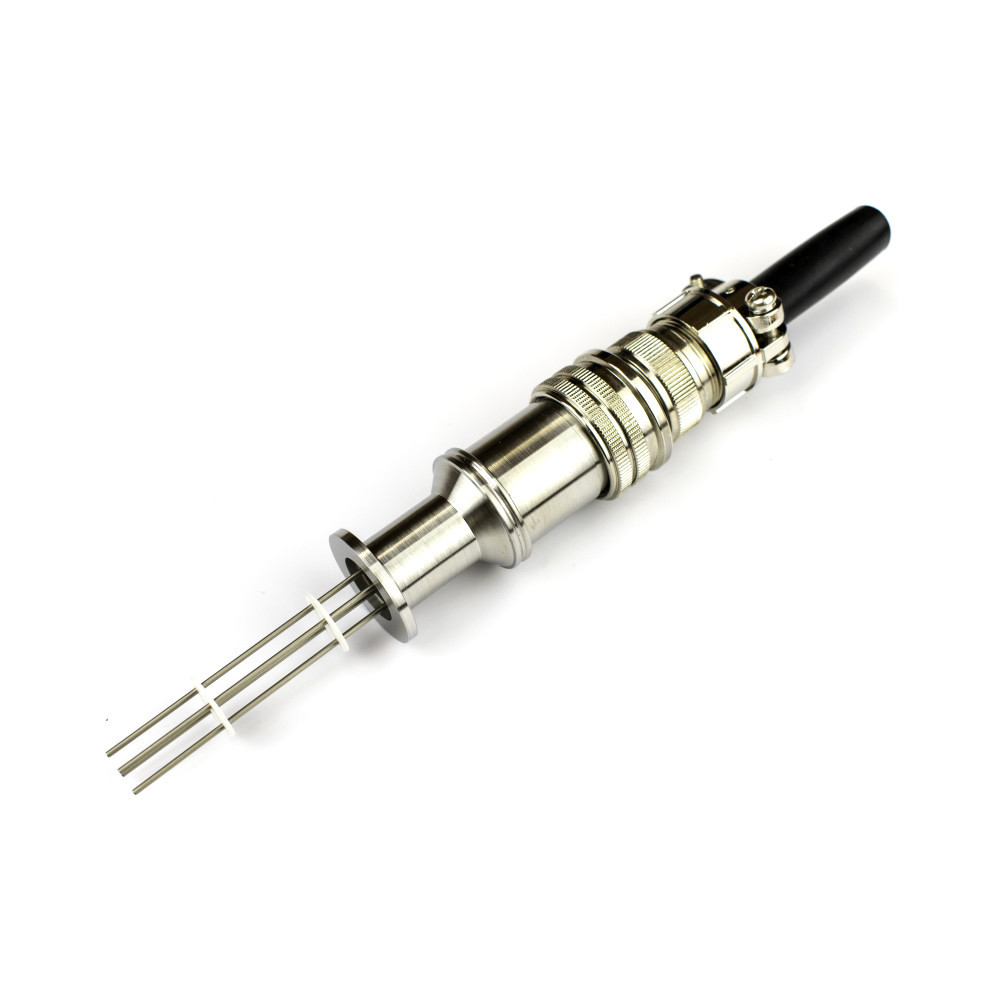

Thermocouple Feedthroughs with MS style circular sockets:

263-TCK-MS-10-C40

DN40CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 10 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-10-K40

DN40KF MS STYLE THERMOCOUPLE FEEDTHROUGH, 10 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-2-C16

DN16CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 2 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-2-C40

DN40CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 2 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-3-C16

DN16CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 3 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-3-C40

DN40CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 3 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-5-C16

DN16CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 5 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-5-C40

DN40CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 5 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

263-TCK-MS-5-K16

DN16KF MS STYLE THERMOCOUPLE FEEDTHROUGH, 5 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET
