The Allectra Triaxial feedthrough 50 Ohm is designed for use with cable which has a shielded conductor, which is itself surrounded by a second isolated shield.

The conductor and inner shield have insulated paths through the feedthrough while the outer second shield is connected to ground. This is the ideal component for low current or voltage measurements, where high accuracy and lowest disruption of the signal are required. For example, this component can be used for accurate beam positioning for synchrotron type applications.

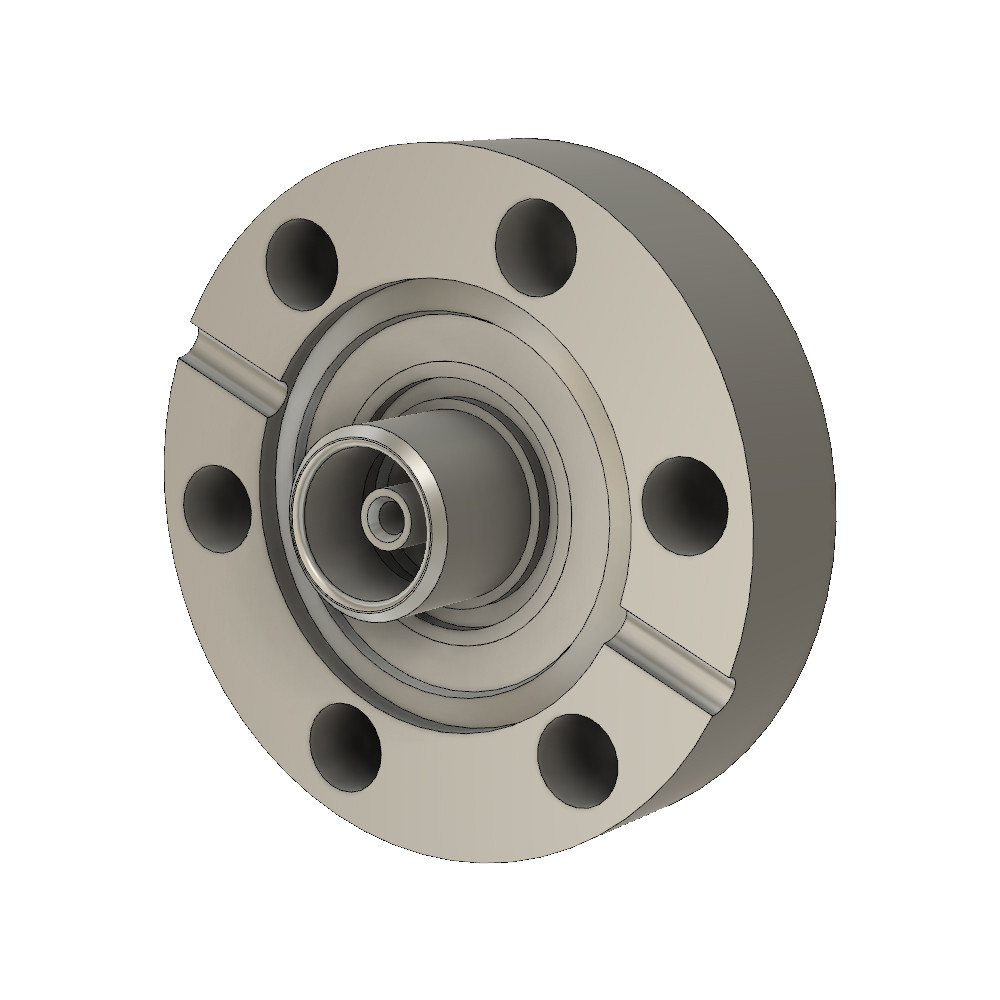

243-TRIAX-C16
DN16CF TRI-AXIAL FEEDTHROUGH, 500V DC & 5A MAX., NO CONNECTORS

243-TRIAX-C40
DN40CF WITH 1 x DOUBLE SIDED TRI-AXIAL FEEDTHROUGH, 500V DC & 5A MAX., NO CONNECTORS

243-TRIAX-C16-SET
DN16CF, 1 X DOUBLE SIDED TRI-AXIAL FEEDTHROUGH, 500V DC & 5A MAX., WITH AIR & VACUUM SIDE CONNECTORS

243-TRIAX-C40-SET
DN40CF, 1 x DOUBLE SIDED TRI-AXIAL FEEDTHROUGH, 500V DC & 5A MAX, WITH AIR & VACUUM SIDE CONNECTORS

243-TRIAX-C40-2
DN40CF WITH 2 x TRI-AXIAL FEEDTHROUGHS, 500V DC & 5A MAX, NO CONNECTORS

243-TRIAX-C40-2-SET
DN40CF WITH 2 x TRI-AXIAL FEEDTHROUGHS, 500V DC & 5A MAX, AIR AND VACUUM CONNECTORS INCLUDED
