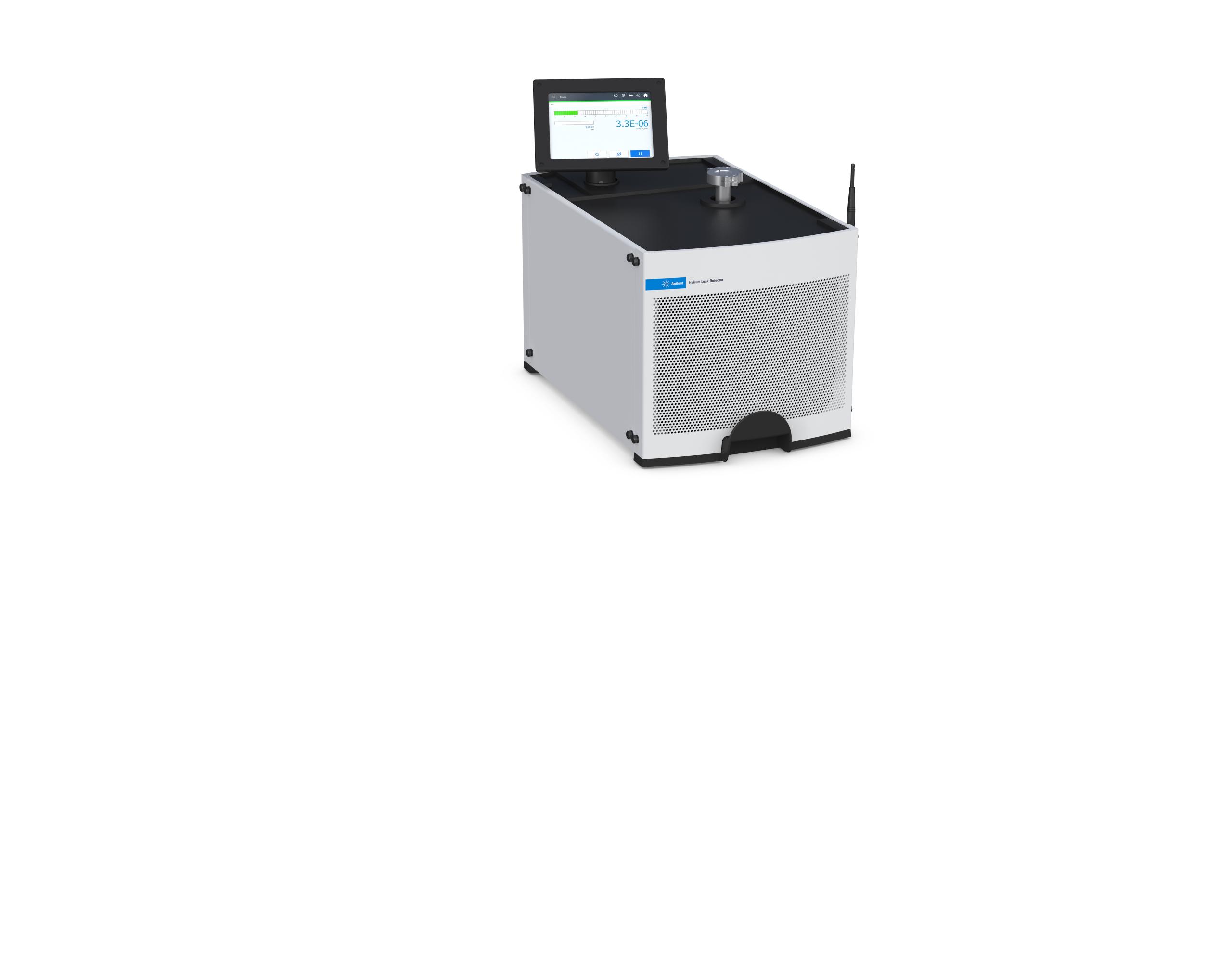

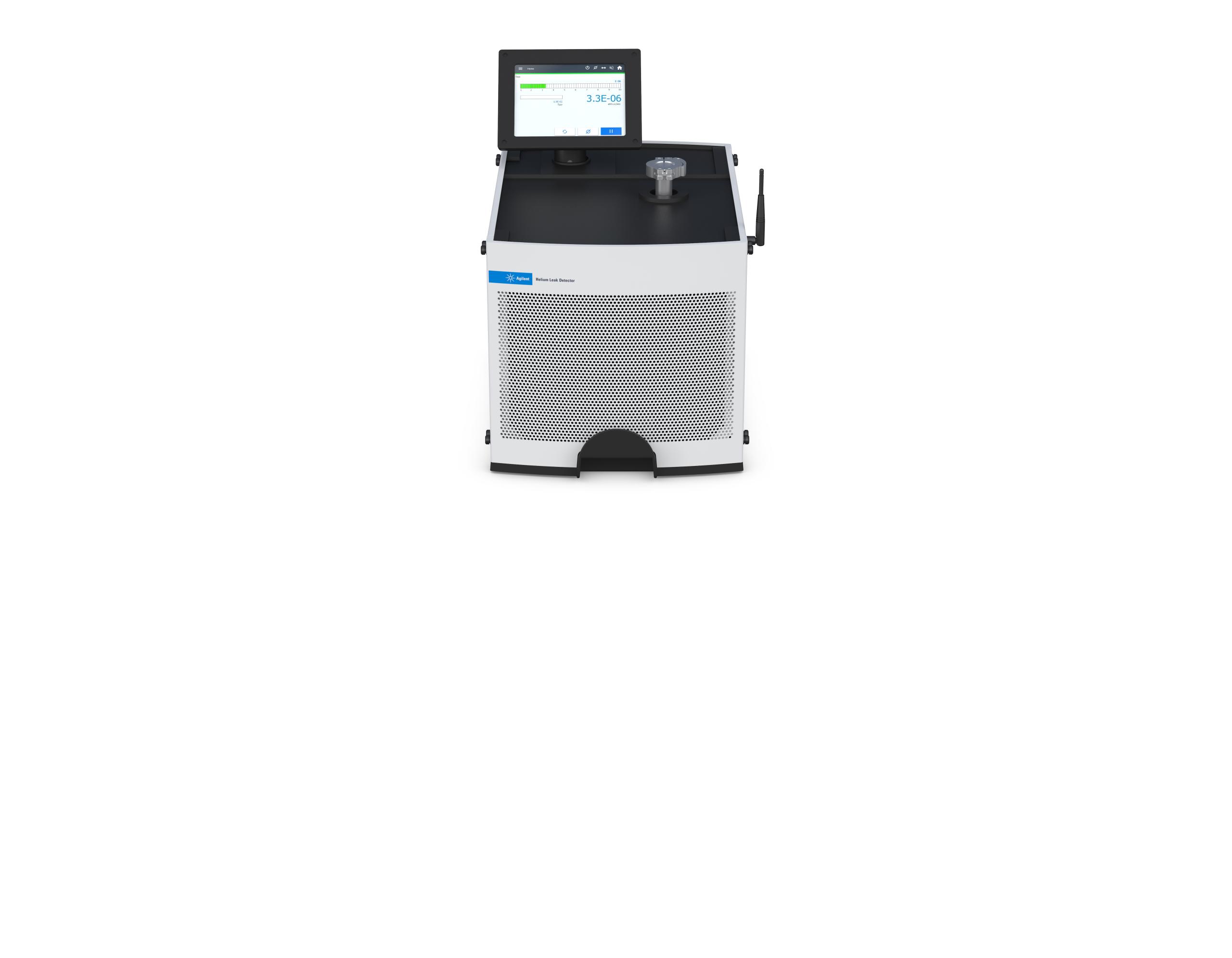

The Agilent HLD BR30 Leak Detector uses a mass spectrometer tuned to detect helium, which is used as a tracer gas to locate and/or measure very small leaks in enclosed devices or systems.

The HLD BR30 is both a precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connect users to powerful leak detection capabilities. Built-in application setups shorten test cycles, and setups can be saved to assure repeatability. It fits easily on a table or bench, and includes an Agilent DS-602 Rotary Vane Pump, with a pumping speed of 30 m³/hour, for very rapid evacuation of test parts and systems and rapid clean-up of ambient helium between test cycles. Hardware required to connect the DS-602 to the HLD BR30 is also included, allowing the pump to be mounted on the floor or where convenient.

Key features

• Six different application set up guides helps you correctly configure your instrument for the best performance, ensuring that parameters are properly set for a thorough and efficient test.

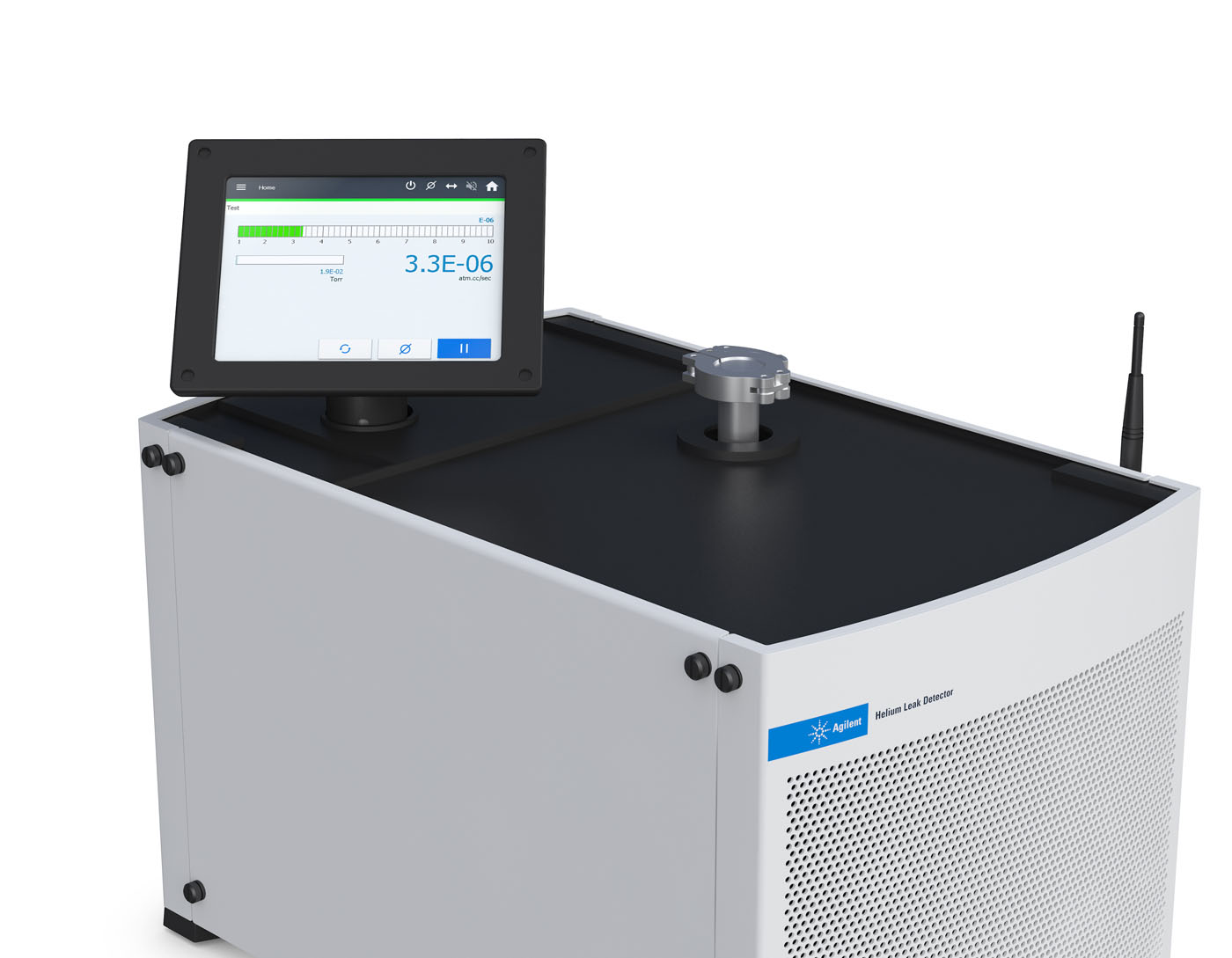

• Larger, more durable, more responsive touch screen interface rotates 180° for ideal viewing.
• Cleaner, more intuitive user interface. Immediate access to often used features and a flat menu structure allows you to quickly find the setting you need.
• Startup wizard helps user set up the instrument on first-time power up.
• Enhanced charting capabilities: Zoom for closer inspection of data, color-coded set points, time-based plot records leak rate and pressure.
• A large work surface provides plenty of room for parts to be tested, tools, etc.
• Improved power-off process keeps spectrometer under vacuum and protects the turbomolecular pump.
