LN-Ultra

High-stability cryo chamber for sectioning and planing

Capable of holding temperatures down to -180°C, the stable environment of the LNUltra is perfect for sectioning and planing a variety of samples. These include rubber and soft polymers, as well as biological cells and tissues, for example for immunolablling using the Tokuyasu technique or CEMOVIS.

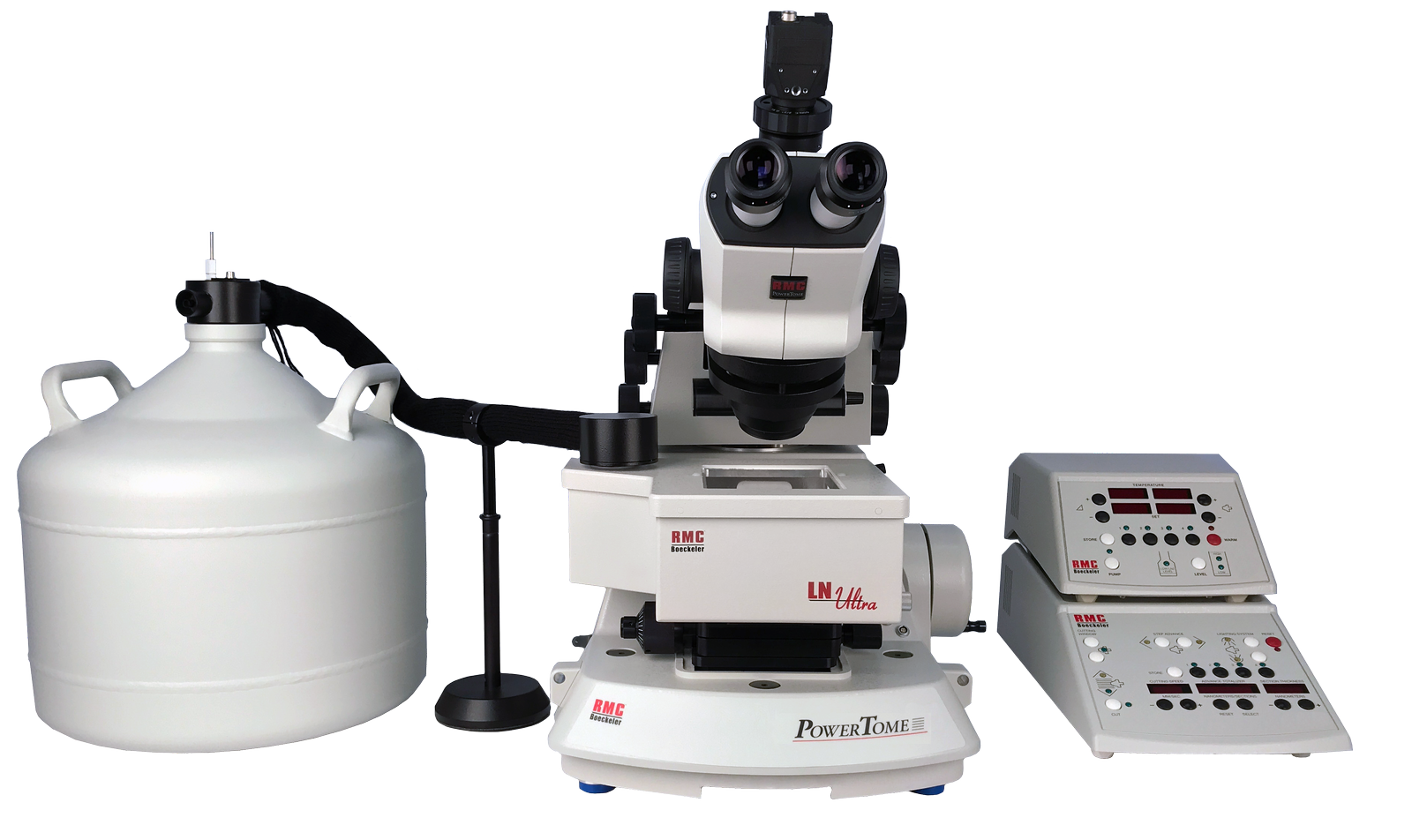

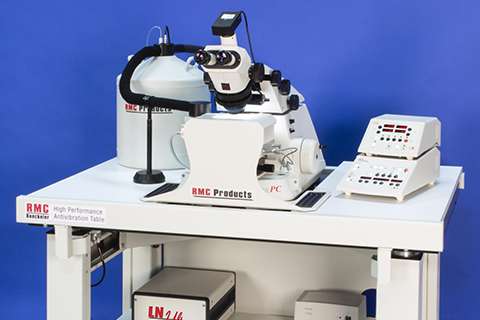

The LNUltra is a liquid nitrogen-cooled cryo chamber attachment for the Powertome ultramicrotomes. The 12 litre dewar can provide a stable sectioning environment for around seven hours due to the low LN2-consumption.

In combination with the Powertome 3D, with its 1mm advance, many sections can be trimmed and cut without resetting, negating the need for realigning the sample and block.

Key features

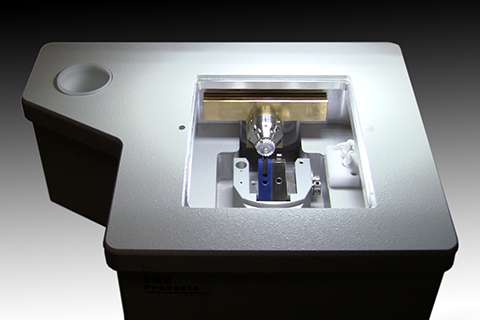

Insulated & externally heated cryosectioning chamber
Ultra-stable temperature
Cryo workstation with handrests and tool tray
Low LN2 consumption

Supplied complete with the following

Frost-free cryosectioning chamber
Cryo workstation with hand rests and tool tray
Control unit with four (4) temperature memory channels
Digital display of knife and specimen temperatures
Flat specimen holder
Four knife holders for combinations of glass, diamond, tungsten carbide knives or diamond trimming tools
Ten 2mm specimen mounting pins
Ten 3mm specimen mounting pins
Ten 6.5mm specimen mounting pins
2mm pin holder
3mm pin holder (for 3mm and 6.5mm mounting pins)
Specimen pin support disk
Mounting dish for loading specimens under LN2
Handling tool
Hex drivers
Four knife spacers (0.5mm, 1mm, 3mm, 6mm)
Static Line mounting assembly
Transformer and pump unit
Power conditioner
12 liter table-top liquid nitrogen Dewar with cap
Liquid nitrogen pump (non-pressurized) with insulated transfer line and air-tubing
Exhaust hose
Pump stand
Fill-line stand
Backlight cable
Spare fuses
Locking screws
Three removable cryochamber windows
Microscope mounted breath shield
