This versatile foreline trap prevents contaminants from entering
the vacuum pump and protects the system from pump fluid
contamination.

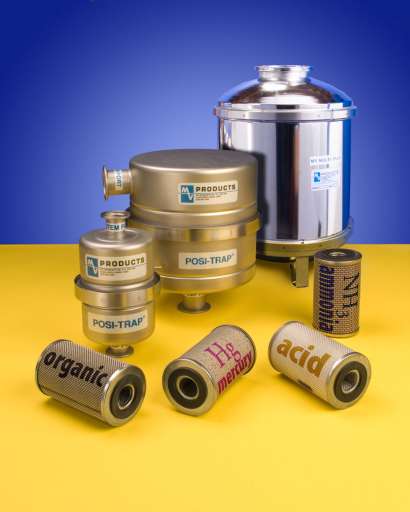

Posi-Trap® vacuum inlet trap filter elements are sealed at both
the inlet and exhaust. This provides positive trapping of the
effluent gas stream and eliminates “blow-by,” forcing all
particulates to pass through the filter medium.

Key features

• Ensures positive flow with no “blow-by”
• All stainless steel construction
• Straight-thru and right-angle styles offered
• Wide variety of filter elements to choose from

Configurations

• 355082 ISO-80 Flange
  • 12″ diameter MULTI-TRAP with 3″ inlet and
    exhaust ports and cooled filter assembly. Requires
    5 filter elements in stage 2 and 5 elements in
    stage 3 (elements not included)
• 355082S ISO-80 Flange
  • Same as above except converted to hold one stage
    of 9.5″ filters. Requires 5 (9.5″) filter elements in
    stage 2 (elements not included

• 355102 ISO-100 Flange
  • 12″ diameter MULTI-TRAP with 4″ inlet and
    exhaust ports and cooled filter assembly. Requires
    5 filter elements in stage 2 and 5 elements in
    stage 3 (elements not included)

• 355102S ISO-100 Flange
  • Same as above except converted to hold one stage
    of 9.5″ filters. Requires 5 (9.5″) filter elements in
    stage 2 (elements not included)

• 355212 n/a Flange
  • Additional cooling option
