Kryo-SEM

PP3006 CoolLok

Cryo transfer for SEM and FIB/SEM
CoolLok system that offers rapid transfer and cryo temperature observation of specimens for SEM, FIB/SEM, beamline or other vacuum systems. Applications include thermal protection of beam-sensitive specimens and low temperature observation of materials such as plastics, polymers low-K dielectrics and hard-soft mixtures. The system can also be used for inert gas transfer of ambient temperature specimens from a glove box.

Key features

  • Rapid specimen exchange
  • Temperature range down to -190°C with stability better than 0.5°C
  • Off-column cooling with all-day runtime between fills
  • Independent cooling of cold stage and cold trap
  • Vacuum or inert gas (glove box) transfer
  • Rapid specimen freezing option 24425
  • Cryo workflow options
  • Extended warranty option

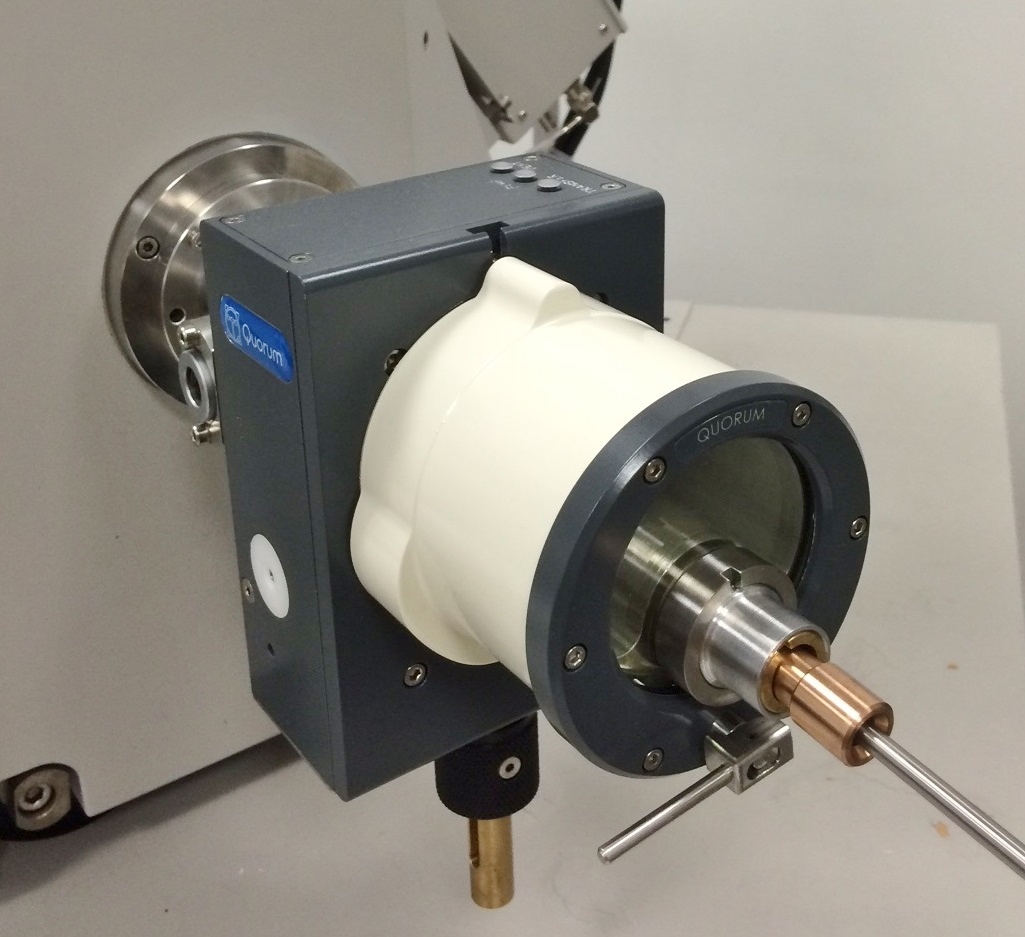

Vacuum airlock and cooling gas feedthrough

Mounted onto a suitable vacuum chamber port, the CoolLok consists of a loading chamber body with built-in controls for pumping, venting and transfer. A custom-designed interface flange to the vacuum chamber and connections and fittings to the pumping system are included (see: Pumping below). The interface has cold nitrogen gas feeds to and from the microscope cold stage and cold trap. Interlocking to the microscope is included.

Specimen holders and transfer device

The compact vacuum transfer device has a bayonet fitting to a dovetail-profile specimen holder (shuttle). Standard shuttles are included, but optional holders allow a range of specimen types to be handled. If the optional freezing station is not used, then consideration needs to be given as to how specimens are mounted because liquids should not be transferred through the airlock and microscope vacuum. The 20270 shuttle with holding clips (supplied as standard) is one option or quick-drying mounting media (not supplied) can be used.

Cold stage and cold trap

A highly stable and thermally isolated nitrogen gas-cooled cold stage attaches to the SEM, FIB/SEM stage. The location and shape of the cold trap is tailored to suit the internal geometry of the microscope. Both cold stage and cold trap are capable of reaching temperatures down to -190°C with a stability of <0.5°C. For easy specimen exchange an interlocked LED chamber light is fitted.
The cold stage connects to the SEM stage using an adaptor and has a dovetail fitting to accept a cryo specimen holder (shuttle). When not in use the cold stage is uncoupled and stored within the chamber with the gas and electrical fittings connected.

Cooling dewar, trolley and controller

The cold stage and cold trap are cooled by a floor-mounted, vacuum isolated 21 litre dewar and heat exchanger assembly, which at normal operating temperatures can run for up to 24 hours between fills. The gas lines between the dewar and the SEM interface are vacuum isolated for maximum thermal efficiency.
The cooling dewar is located on a floor-mounted trolley which also houses the temperature monitor/controller for the cold stage and temperature monitor for cold trap, plus nitrogen gas flow controllers.

Rapid freezing station (optional)

With the standard CoolLok, specimen freezing is by contact with the SEM cold stage following transfer and therefore freezing rates are relatively slow. This is generally suitable for hard, non-hydrated specimens, but for liquid-based material rapid freezing is essential to reduce the detrimental effects of ice crystal growth and to allow through-vacuum transfer onto the cold stage.

For these applications the optional nitrogen slush freezing station is required. However, for many applications (especially lifesciences) cold fracturing and sputter coating are essential process steps and require the advanced capabilities of the Quorum PP3010 – a full cryo-SEM preparation system.

Options

  • Glove box valve/airlock assembly
  • Rapid nitrogen slush freezing station
