Roterande genomföringar

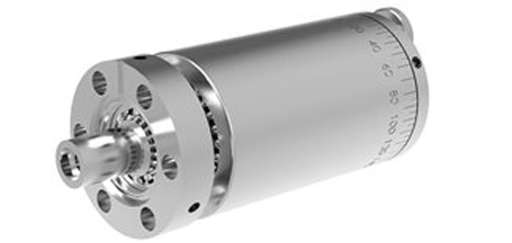

MD16N and MD16A series

Solid MagiDrive series
The MD16 rotary feedthrough is the ‘work horse’ of the MagiDrive series.

This standard drive provides sufficient torque for the majority of miniature feedthrough requirements. The MD16N variant provides 0.45Nm torque. The MD16A provides the highest torque on the market for a CF16 flange (1.8Nm) and is ideal for shutter applications. It is bakeable to 250oC without having to remove the outer magnet assembly.

Key features

  • Magnetically-coupled fail-safe design rotary feedthrough
  • High torque-to-size ratio
  • No bellows or dynamic seals
  • Bakeable to 250°C
  • Zero backlash under low load
