HIS 14 HD Mono

Monochromatic high density VUV source
The HIS 14 HD Mono has been designed for ultraviolet photoelectron spectroscopy on solids with the monochromatic discharge lines of He I and He II. Together with the small spot of 300 μm the HIS 14 HD Mono is the best choice for ARPES or PEEM applications where high flux densities into a small area are mandatory.

The focusing and monochromatizing of the light spot down to 300 μm is realized with state of the art synchrotron beam line optics technology.

Key features

  • Dispersive element with
    20 % transmission for He I and II
  • Photon flux
    He I: > 1012 Photons/s/mm2 He II: > 1011 Photons/s/mm2
  • Spot size < 300 μm
    (ø 1.7mm light capillary )
  • Ease of operation
  • Discharge regulation
  • Operating pressure down to
    10-10 mbar range
    (with 3rd pumping stage)

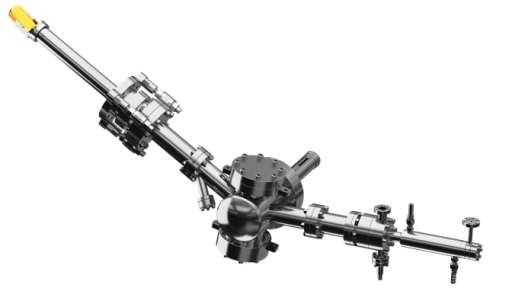

The HIS 14 HD Mono is mounted on a flange CF 63 ID (optional: CF 100 ID) and comes with a customized adaptor flange to adapt the HIS 14 HD to the customer‘s experiment (chamber drwg. to be provided by the customer).

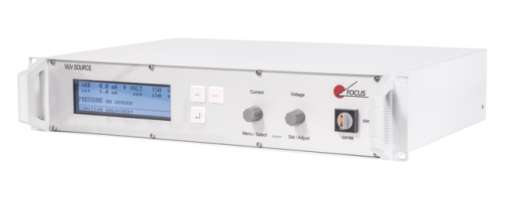

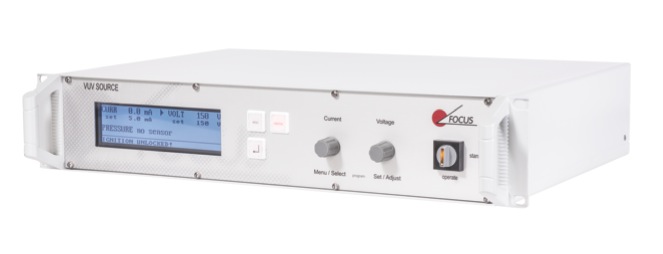

A low noise digital power supply provides up to 300 mA discharge current for HeI and HeII operation. The minimum photon line width with HeI excitation is below 2 meV. The power supply supports the automatic plasma ignition and the included Pirani pressure gauge.
