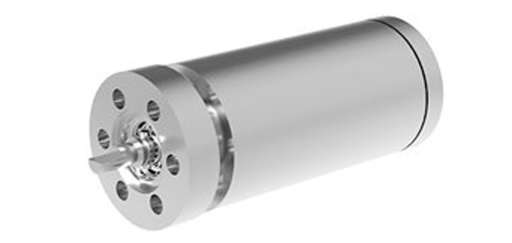

MD10 series

Solid MagiDrive series
This miniature rotary feedthrough is made possible through the use of the CF10 micro flange, which has an outside diameter of just 25.4mm.

The body diameter is no bigger than the flange 1″ OD, which makes the MD10 ideal for rotating small instrumentation loads in applications where space is at a premium.

A full range of actuation options is available, including stepper motorisation and pnuematic actuation.

Key features

  • Magnetically-coupled fail-safe design rotary feedthrough
  • Smallest UHV drive on market
  • High torque-to-size ratio
  • No bellows or dynamic seals
  • Bakeable to 250°C
  • Zero backlash under low load
