Port aligner range

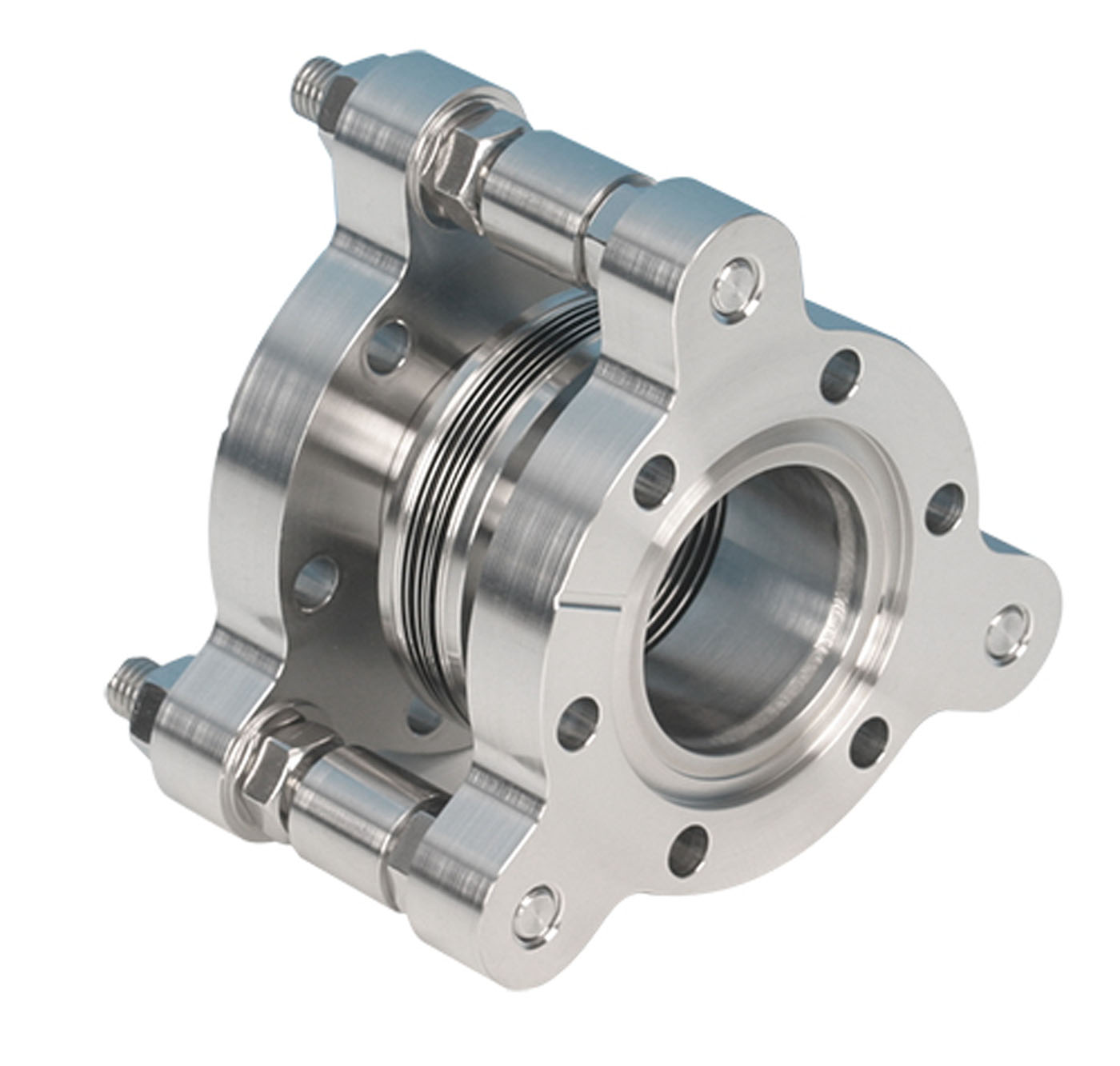

Enables the distance and angular relationship between two flanges to be adjusted, where a fixed flange supports three equi-spaced threaded shafts, and in parallel, a travelling flange has adjustable floating mounts. A typical application would be the final alignment of sample transfer arms.

Key features

  • Any-orientation mounting
  • +/- 5mm axial adjustment
  • +/- 3° angular tilt
  • High quality flexible 316L bellows accommodates motion, whilst maintaining ultra-high vacuum
  • Bakeable to 250°C
