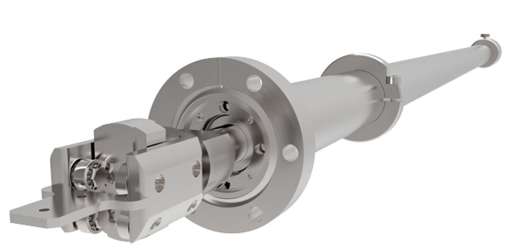

EPP series

Linear and elevation motion

Complete sampling-handling system providing linear motion and up to 50mm of lift in the Y-axis for sample hand-off.

Stroke lengths from 304mm to 1219mm and motorisation options available.

The Elevating PowerProbe transforms conventional approaches to sample transfer.

Key features

  • Up to 50mm of lift in the Y-axis
  • Unrivalled axial coupling strength
  • Exceptional axial stiffness
  • Zero backlash under low load
  • Bakeable to 250°C without removing any components

In addition to its internally-guided linear motion, the probe has the ability to elevate its end-effector throughout its stroke, providing 12.7mm of lift as standard (with 25mm and 50mm options) in the Y axis for sample hand-off.

This PowerProbe variant greatly simplifies sample transfer techniques, providing a single device to provide both linear motion for sample introduction and the lift/lower motion to collect or hand-off the sample.

With a range of industry-standard effectors, the Elevating PowerProbe provides a complete sample-handling system in its own right removing the need for secondary motion tools. This reduces cost and simplifies the transfer process.
