Miniature and Small VacIon Pumps

Ion Pumps

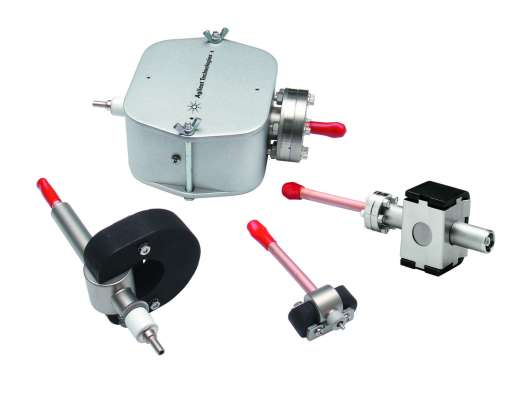

The Mini and Small VacIon Plus pumps range from pumping speeds of 0,4 to 10 L/s for nitrogen. These ion pumps are available with Diode and Noble Diode.

The Miniature Vaclon pump is a diode configuration and provides approximately 0.4 l/s of nitrogen pumping speed.

The 2 l/s model is a modified diode configuration to enhance starting at low pressure. The 10 l/s pump is a noble gas optimized diode configuration with high efficiency for residual gases such as hydrogen. The pumping speed for noble gases is about 20% of the nominal speed.

Modified versions of standard pumps can be provided when different inlet tube lengths, angles, and diameters are required. These pumps can also be customized with different high voltage feedthroughs, body geometries, and pumping cell arrangements. Special testing procedures can be quoted for customers who have specific requirements.
